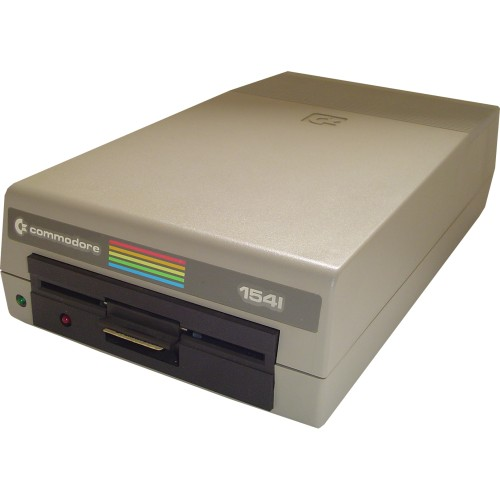

Commodore 1541 Front View
The iconic beige front of the Commodore 1541 disk drive.

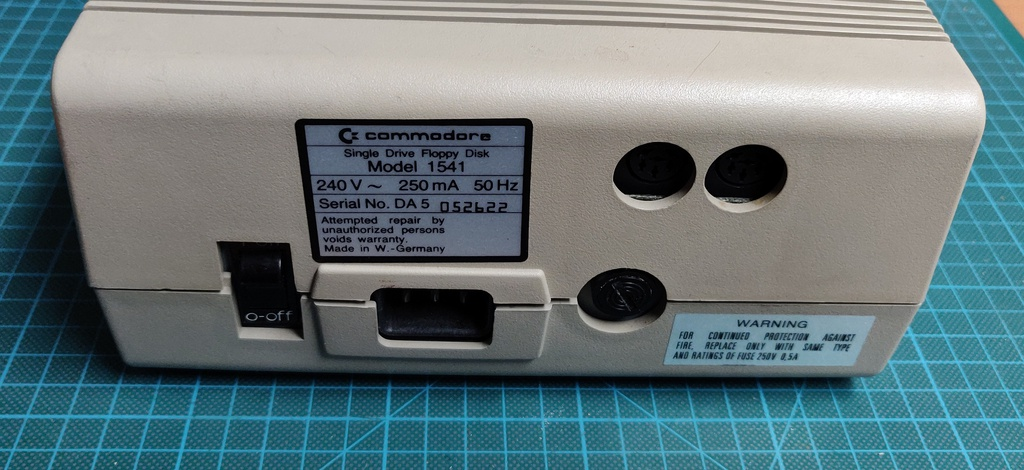

Commodore 1541 Rear View
The rear panel showing the power switch, serial bus, and power connector.

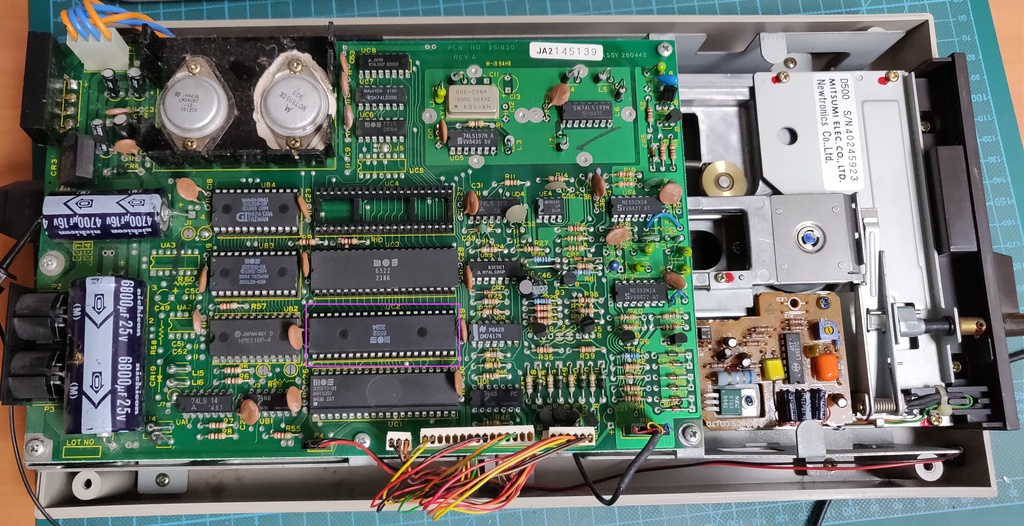

Commodore 1541 Interior
The interior of the 1541 showing its circuit board and drive mechanism.
5.25-inch Floppy Disk
A 5.25-inch floppy disk like those used with the 1541.
Commodore 1541 Floppy Drive
“The 1541 was more than just a disk drive - it was a computer in its own right. With its own 6502 processor and 2K of RAM, it was almost as powerful as the C64 it served. We packed an incredible amount of functionality into that beige box, and while it had its quirks, it became one of the most iconic computer peripherals of all time. The sound of its stepper motor seeking tracks is instantly recognizable to anyone who grew up with a C64.” - Bil Herd, Commodore Engineer
The Commodore 1541 (also known as the VIC-1541) was a floppy disk drive for the Commodore 64, Commodore’s most popular home computer. Released in 1982, it became one of the most recognizable computer peripherals of the 1980s. The 1541 was a single-sided 170 kilobyte drive for 5.25” disks, featuring its own MOS 6502 microprocessor, 2 KB of RAM, and a dedicated disk controller chip (the same VIC-II chip used in the VIC-20). Its distinctive design, featuring a heavy metal chassis and a front panel with a single LED drive light, made it instantly recognizable.
Technical Specifications
Technical Specifications
- CPU
- MOS 6502 @ 1 MHz
- Memory
- 2 KB RAM, 16 KB ROM (16 KB ROM, 2 KB RAM)
- Storage
- Single-sided, single density, 170 KB per disk (35 tracks, 256 bytes/sector, 683 sectors max)
- Dimensions
- 21.5 × 40 × 33.6 cm (8.5 × 15.75 × 13.25 in)
- Weight
- 4.5 kg (10 lb)
- Power
- 100-120V or 200-240V AC, 25W
Features and Capabilities
Hardware Design
- Drive Mechanism: Full-height Tandon TM100 or later half-height mechanisms (1541C/1541-II)
- Heads: Single read/write head
- Motor: 300 RPM spindle motor with belt drive
- Interface: Proprietary serial bus (IEC)
- Power Supply: Internal linear power supply (external in 1541-II)
Storage Format
- Capacity: 170 KB (unformatted: ~195 KB)
- Sectors per Track: 17-21 (variable)
- Tracks: 35 (numbered 1-35)
- Sectors per Disk: 683 maximum
- Sector Size: 256 bytes
- Transfer Rate: ~300 bytes/second
Performance
- Average Access Time: ~200ms
- Track-to-Track Seek Time: ~3ms
- Average Rotational Latency: 100ms
- Data Transfer Rate: 32,656 bps (raw)
- Bit Cell Time: ~30.5μs
Models and Variants
Original 1541 (1982-1983)
- Model Number: VIC-1541 (early units), CBM 1541 (later units)
- Features: Tandon TM100 mechanism, Alps drive mechanism in later units
- Power Supply: Built-in linear power supply
- Known Issues: Heat generation, alignment problems
1541C (1986)
- Improvements: Quieter operation, improved cooling
- Cosmetic Changes: Beige case to match C64C
- Reliability: More reliable power supply
1541-II (1988)
- Design: Compact, external power supply
- Mechanism: More reliable half-height mechanism
- Power Supply: External “brick”-style power supply
- Compatibility: Fully compatible with original 1541
1541C (Aldi Version)
- Variant: Sold through Aldi stores in Europe
- Differences: Different power supply connector
- Rarity: Relatively rare
Usage and Operation
Basic Commands
LOAD "*",8 : REM Load first program on disk
LOAD "PROGRAM",8 : REM Load specific program
SAVE "PROGRAM",8 : REM Save program to disk
OPEN 1,8,15,"I": REM Open command channel
PRINT#1,"I" : REM Initialize disk
CLOSE 1 : REM Close channel
Disk Commands
- NEW: Format disk
- COPY: Copy files
- RENAME: Rename file
- SCRATCH: Delete file
- VALIDATE: Rebuild disk directory
- BACKUP: Copy entire disk
Common Error Messages
- ?FILE NOT FOUND: File doesn’t exist
- ?FILE EXISTS: File already exists
- ?SYNTAX ERROR: Command error
- ?DEVICE NOT PRESENT: Drive not connected
- ?READ ERROR: Read/write error
Technical Details
File System
- File Types: PRG, SEQ, USR, REL, DEL
- Directory Structure: Flat (no subdirectories)
- File Header: 30 characters max
- Block Availability Map: Track 18, sector 0
- Directory: Track 18, sectors 1-18
- BAM: Tracks free/used sectors
Disk Format
- Sector Interleave: 10 sectors
- Gap Lengths: Vary by track
- Sync Mark: $89, $88, $88, $88, $88, $88, $88, $88
- Header ID: $08 (GCR encoded as $52, $52, $52, $52)
- Checksum: XOR of all bytes in sector
Hardware Registers
- $1800: Data register
- $1801: Status register
- $1802: Command register
- $1803: Track register
- $1804: Sector register
- $1805: Data register
- $1806: Status register
- $1807: Command register
Common Issues and Solutions
Common Problems
- Drive Not Responding
- Check power connection
- Verify serial cable is secure
- Try different device number
- Read/Write Errors
- Clean drive heads
- Check disk for damage
- Realign drive heads
- Spindle Motor Not Spinning
- Check belt condition
- Verify power supply voltages
- Lubricate spindle bearing
- Error 21, Read Error
- Dirty heads
- Bad disk
- Head alignment off
Maintenance
- Head Cleaning: Use isopropyl alcohol and cleaning disk
- Belt Replacement: Common issue in older drives
- Lubrication: Spindle bearing and stepper motor
- Alignment: Requires alignment disk and oscilloscope
Hacks and Modifications
Hardware Hacks
- JiffyDOS: Faster disk operating system
- SpeedDOS: Alternative DOS with faster transfer
- Parallel Cable: Speed up transfers
- EPROM Upgrades: Custom firmware
- LED Mods: Additional status LEDs
Software Enhancements
- Fast Loaders: Up to 5x speed increase
- Disk Utilities: Copy programs, disk doctors
- RAM Expanders: Use computer’s memory as disk cache
Legacy and Impact
Historical Significance
- Market Dominance: Shipped with most C64 systems
- Cultural Icon: Featured in movies, TV shows
- Hacking Culture: Inspired many programmers
- Demo Scene: Pushed to limits by demo coders
Collectibility
- Value: $50-$200 depending on condition
- Rare Variants: Early VIC-1541 models
- Mint Condition: Boxed units command premium
- Restoration: Growing hobbyist community
Modern Alternatives
- SD2IEC: SD card adapter
- Pi1541: Raspberry Pi emulation
- UAE: Software emulation
- 1541 Ultimate: FPGA-based solution
Technical Documentation
Pinouts
Power Connector (Original 1541)
1 - +5V DC
2 - Ground
3 - +12V DC
4 - Ground
IEC Serial Bus
1 - SRQ (Service Request)
2 - GND (Ground)
3 - ATN (Attention)
4 - CLK (Clock)
5 - DATA (Data)
6 - RESET
ROM Versions
- 1540 ROM: Original, rare
- 1541 ROM: Standard version
- 1541C ROM: Bug fixes
- 1541-II ROM: Latest version
Diagnostic Mode
- Power on while holding down the drive’s reset button
- LED will blink in patterns indicating test results
- Specific blink codes indicate different hardware issues
In Popular Culture
- Featured in movies like “WarGames” and “The Terminator”
- Subject of many YouTube restoration videos
- Appears in documentaries about 1980s computing
- Referenced in songs and TV shows of the era
